The TG-5-B

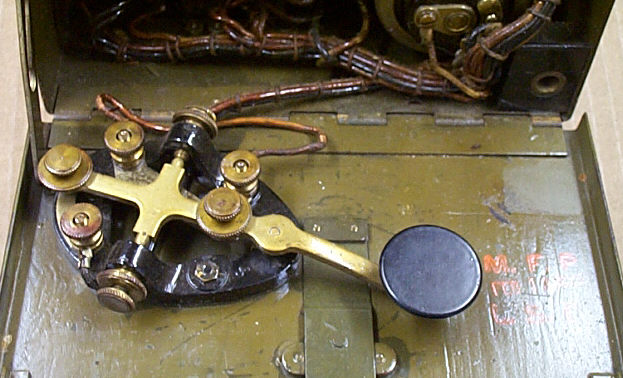

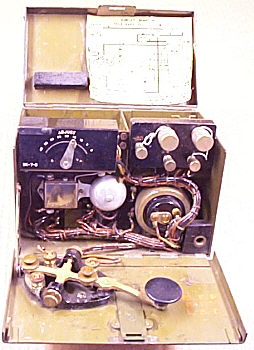

The TG-5-B seems a bit over designed for a telegraph set, but this is the way they built things in those days. The key attached to the front cover is a J-41-A (shown in detail below). The two orange stamps on the cover are a Signal Corps acceptance stamp and a Fungus Protection stamp. I assume the set was used in a wired, or landline, field telegraph network.

(click to enlarge)



(click to enlarge)

(click to enlarge)



(click to enlarge)

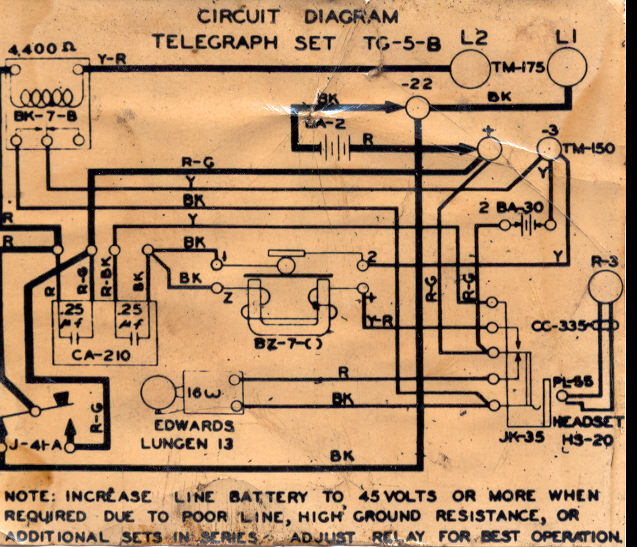

Here is the circuit diagram, which is glued to the inside of the lid.

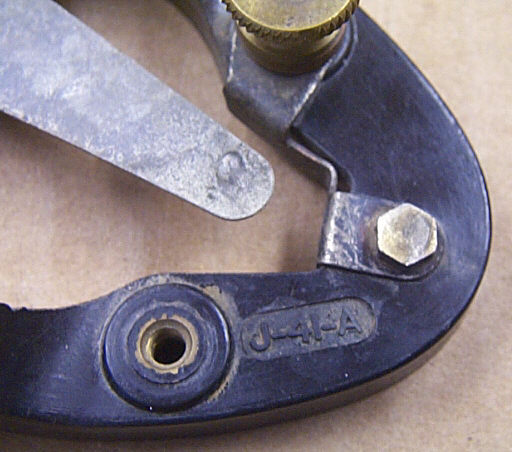

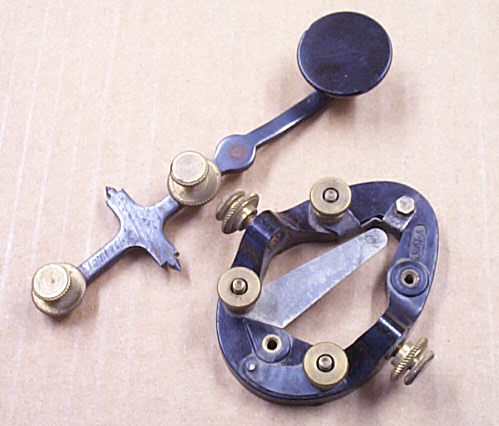

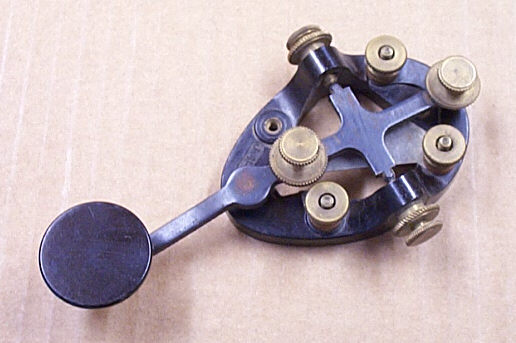

This special version of the J-37, called a J-41-A is furnished with an extra terminal on the right side. The connecting straps are arranged such that there is continuity between the two back terminals on key-up, and between the two terminals on the right on key-down.

(click to enlarge)



(click to enlarge)

(click to enlarge)
