Key and Plug Assembly No. 9

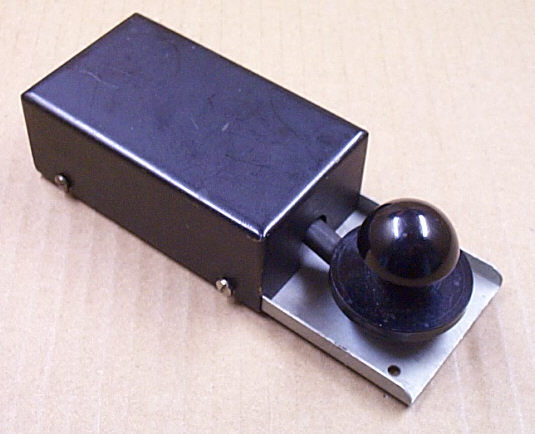

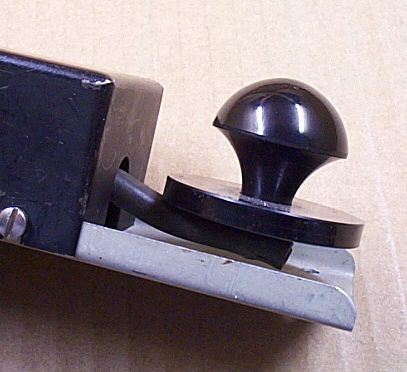

The Key and Plug Assembly No. 9 has several unusual characteristics. The base and black cover are made of thin aluminum, and the knob is more like the European style "doorknob" than the traditional U.S. style button. The front of the lever is covered with rubber insulation.

(click to enlarge)



(click to enlarge)

(click to enlarge)

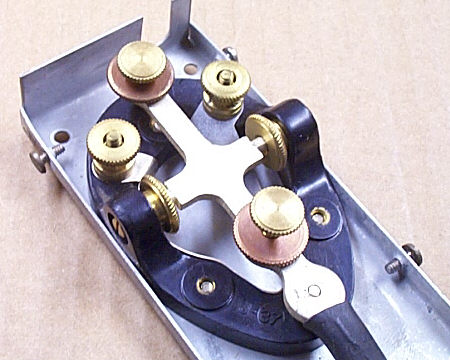

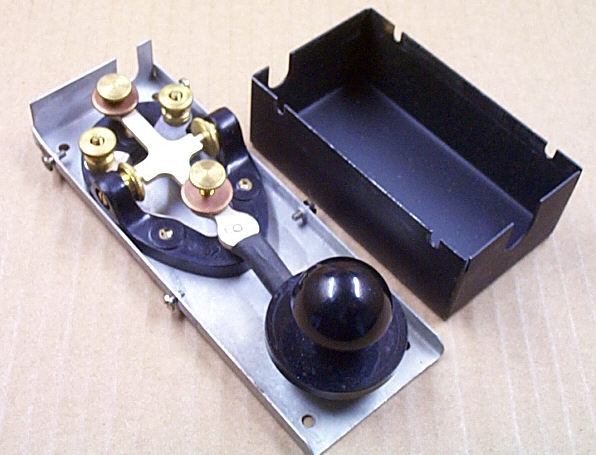

Notice that the trunnion lock nuts have been moved INSIDE the frame to reduce the side-to-side clearance of the J-37.

(click to enlarge)



(click to enlarge)

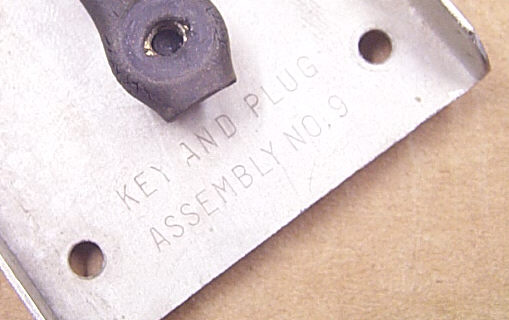

Here you can see the identification stamped into the front of the base.


A Key and Plug Assembly No. 9 with web leg straps and cloth connecting cable still attached.

(click to enlarge)
